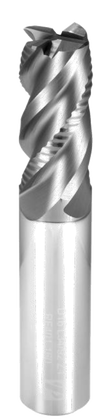

Carbide end mills roughing-finishing 4 teeth RF401
Recommended for use
< 55 HRc
< 1600 N/mm2
Steel
Stainless Steel
Cast Iron
Coating
AlTiN

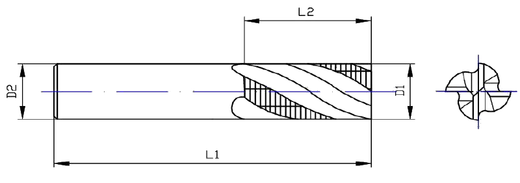

| Catalogue number | Number of teeth Z | Diameter D1 h10 | Corner edge K x 45° | Overall length L1 | Length of edge L2 | Reduced neck length L3 | Reduced neck diameter D3 | Shank diameter D2 h6 |
|---|---|---|---|---|---|---|---|---|
| RF401.060 | 4 | 6 | 0,15 | 57 | 15 | - | - | 6 |
| RF401.080 | 4 | 8 | 0,2 | 63 | 22 | - | - | 8 |
| RF401.100 | 4 | 10 | 0,2 | 72 | 26 | - | - | 10 |
| RF401.120 | 4 | 12 | 0,25 | 83 | 30 | - | - | 12 |
| RF401.160 | 4 | 16 | 0,35 | 92 | 36 | - | - | 16 |
| RF401.200 | 4 | 20 | 0,4 | 104 | 42 | - | - | 20 |
