Carbide end mills 4 teeth with helix 45° OR452
Recommended for use
< 60 HRc
< 1600 N/mm2
Steel
Stainless Steel
Cast Iron
Applicable
Copper
Aluminium
Coating
AlCrN

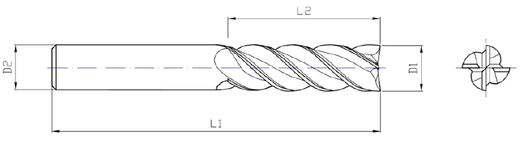

| Catalogue number | Number of teeth Z | Diameter D1 h10 | Corner edge K x 45° | Overall length L1 | Length of edge L2 | Reduced neck length L3 | Reduced neck diameter D3 | Shank diameter D2 h6 |
|---|---|---|---|---|---|---|---|---|
| OR452.040 | 4 | 4 | 0,07 | 50 | 10 | - | - | 4 |
| OR452.060 | 4 | 6 | 0,07 | 62 | 18 | - | - | 6 |
| OR452.080 | 4 | 8 | 0,12 | 70 | 24 | - | - | 8 |
| OR452.100 | 4 | 10 | 0,2 | 80 | 30 | - | - | 10 |
| OR452.120 | 4 | 12 | 0,2 | 90 | 36 | - | - | 12 |
| OR452.140 | 4 | 14 | 0,2 | 100 | 42 | - | - | 14 |
| OR452.160 | 4 | 16 | 0,2 | 110 | 48 | - | - | 16 |
| OR451.200 | 4 | 20 | 0,3 | 104 | 42 | - | - | 20 |
| OR452.200 | 4 | 20 | 0,3 | 124 | 65 | - | - | 20 |
