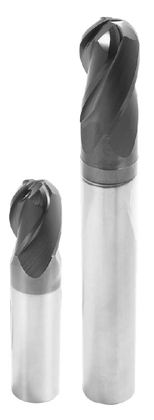

Carbide ball-nose end mills 4 teeth OK401/OK402
Recommended for use
< 55 HRc
< 1600 N/mm2
Steel
Stainless Steel
Cast Iron
Applicable
Aluminium
Coating
AlTiN
| Catalogue number | Number of teeth Z | Diameter D1 h8 | Corner edge R 0/-0,02 | Overall length L1 | Length of edge L2 | Reduced neck length L3 | Reduced neck diameter D3 | Shank diameter D2 h6 |
|---|---|---|---|---|---|---|---|---|
| OK401.030 | 4 | 3 | 1,5 | 38 | 7 | - | - | 3 |
| OK402.030 | 4 | 3 | 1,5 | 60 | 8 | - | - | 3 |
| OK401.040 | 4 | 4 | 2 | 50 | 8 | - | - | 4 |
| OK402.040 | 4 | 4 | 2 | 70 | 8 | - | - | 4 |
| OK401.050 | 4 | 5 | 2,5 | 50 | 10 | - | - | 5 |
| OK402.050 | 4 | 5 | 2,5 | 80 | 10 | - | - | 5 |
| OK401.060 | 4 | 6 | 3 | 57 | 10 | - | - | 6 |
| OK402.060 | 4 | 6 | 3 | 90 | 12 | - | - | 6 |
| OK401.080 | 4 | 8 | 4 | 63 | 16 | - | - | 8 |
| OK402.080 | 4 | 8 | 4 | 110 | 14 | - | - | 8 |
| OK401.100 | 4 | 10 | 5 | 72 | 19 | - | - | 10 |
| OK402.100 | 4 | 10 | 5 | 110 | 18 | - | - | 10 |
| OK401.120 | 4 | 12 | 6 | 83 | 22 | - | - | 12 |
| OK402.120 | 4 | 12 | 6 | 110 | 22 | - | - | 12 |
| OK401.140 | 4 | 14 | 7 | 83 | 22 | - | - | 14 |
| OK402.140 | 4 | 14 | 7 | 110 | 26 | - | - | 14 |
| OK401.160 | 4 | 16 | 8 | 92 | 26 | - | - | 16 |
| OK402.160 | 4 | 16 | 8 | 140 | 30 | - | - | 16 |
| OK401.180 | 4 | 18 | 9 | 92 | 26 | - | - | 18 |
| OK401.200 | 4 | 20 | 10 | 104 | 32 | - | - | 20 |
| OK402.200 | 4 | 20 | 10 | 160 | 38 | - | - | 20 |
