Carbide chamfer mills front/back deburring tools OS401/OS402
Recommended for use
< 55 HRc
< 1600 N/mm2
Steel
Stainless Steel
Cast Iron
Applicable
Copper
Aluminium
Coating
AlTiN

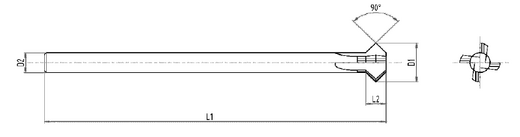

| Catalogue number | Number of teeth Z | Diameter D1 | Overall length L1 | Length of edge L2 | Reduced neck length L3 | Reduced neck diameter D3 | Shank diameter D2 |
|---|---|---|---|---|---|---|---|
| OS402.030 | 4 | 3 | 75 | 2 | 12 | 2 | 3 |
| OS402.040 | 4 | 4 | 83 | 2,7 | 17,5 | 2,9 | 4 |
| OS401.050 | 4 | 5 | 54 | - | 25 | 2,9 | 5 |
| OS402.050 | 4 | 5 | 100 | 3 | 19,5 | 2,9 | 5 |
| OS401.060 | 4 | 6 | 54 | - | 20,5 | 3,9 | 6 |
| OS402.060 | 4 | 6 | 100 | 4 | 20,5 | 3,6 | 6 |
| OS401.080 | 4 | 8 | 83 | - | 40 | 6 | 8 |
| OS402.080 | 4 | 8 | 100 | 2 | - | - | 6 |
| OS402.100 | 4 | 10 | 100 | 4 | - | - | 6 |
| OS402.120 | 4 | 12 | 100 | 6 | - | - | 6 |
