Carbide end mills with corner radius 4 teeth KT401/KT402
Recommended for use
< 65 HRc
Steel
Stainless Steel
Cast Iron
Applicable
< 55 HRc
Coating
AlCrN

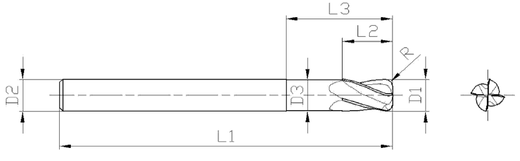

| Catalogue number | Diameter D1 h8 | Corner edge R 0/-0,02 | Overall length L1 | Length of edge L2 | Reduced neck length L3 | Reduced neck diameter D3 | Shank diameter D2 h6 |
|---|---|---|---|---|---|---|---|
| KT401.030.03 | 3 | 0,3 | 57 | 4 | 14 | 2,9 | 6 |
| KT401.030.05 | 3 | 0,5 | 57 | 4 | 14 | 2,9 | 6 |
| KT401.040.03 | 4 | 0,3 | 57 | 4 | 14,5 | 3,8 | 6 |
| KT402.040.03 | 4 | 0,3 | 80 | 4 | 16 | 3,8 | 6 |
| KT401.040.05 | 4 | 0,5 | 57 | 4 | 14,5 | 3,8 | 6 |
| KT402.040.05 | 4 | 0,5 | 80 | 4 | 16 | 3,8 | 6 |
| KT401.050.05 | 5 | 0,5 | 57 | 6 | 14,5 | 4,8 | 6 |
| KT401.060.05 | 6 | 0,5 | 57 | 6 | 21 | 5,8 | 6 |
| KT402.060.05 | 6 | 0,5 | 90 | 9 | 21 | 5,8 | 6 |
| KT401.060.10 | 6 | 1 | 57 | 6 | 21 | 5,8 | 6 |
| KT402.060.10 | 6 | 1 | 90 | 9 | 21 | 5,8 | 6 |
| KT401.060.15 | 6 | 1,5 | 57 | 6 | 21 | 5,8 | 6 |
| KT401.080.05 | 8 | 0,5 | 63 | 8 | 27 | 7,6 | 8 |
| KT402.080.05 | 8 | 0,5 | 100 | 12 | 27 | 7,6 | 8 |
| KT401.080.10 | 8 | 1 | 63 | 8 | 27 | 7,6 | 8 |
| KT402.080.10 | 8 | 1 | 100 | 12 | 27 | 7,6 | 8 |
| KT401.080.20 | 8 | 2 | 63 | 8 | 27 | 7,6 | 8 |
| KT401.100.05 | 10 | 0,5 | 72 | 10 | 32 | 9,6 | 10 |
| KT402.100.05 | 10 | 0,5 | 100 | 15 | 32 | 9,6 | 10 |
| KT401.100.10 | 10 | 1 | 72 | 10 | 32 | 9,6 | 10 |
| KT402.100.10 | 10 | 1 | 100 | 15 | 32 | 9,6 | 10 |
| KT401.100.20 | 10 | 2 | 72 | 10 | 32 | 9,6 | 10 |
| KT402.100.20 | 10 | 2 | 100 | 15 | 32 | 9,6 | 10 |
| KT401.120.05 | 12 | 0,5 | 83 | 12 | 38 | 11,5 | 12 |
| KT402.120.05 | 12 | 0,5 | 110 | 18 | 38 | 11,5 | 12 |
| KT401.120.10 | 12 | 1 | 83 | 12 | 38 | 11,5 | 12 |
| KT402.120.10 | 12 | 1 | 110 | 18 | 38 | 11,5 | 12 |
| KT401.120.15 | 12 | 1,5 | 83 | 12 | 38 | 11,5 | 12 |
| KT401.120.20 | 12 | 2 | 83 | 12 | 38 | 11,5 | 12 |
| KT402.120.20 | 12 | 2 | 110 | 18 | 38 | 11,5 | 12 |
| KT401.120.30 | 12 | 3 | 83 | 12 | 38 | 11,5 | 12 |
| KT401.160.10 | 16 | 1 | 92 | 16 | 44 | 15,5 | 16 |
| KT401.160.15 | 16 | 1,5 | 92 | 16 | 44 | 15,5 | 16 |
| KT401.160.20 | 16 | 2 | 92 | 16 | 44 | 15,5 | 16 |
